Braille Signs Application
At YIJIAO, we are committed to providing accessibility and inclusion for visually impaired individuals in various environments.
SCHOOL
Applied in schools to identify classrooms, libraries, reading areas, and administrative offices. These signs assist students, staff, and visitors in navigating the campus safely and independently.
OFFICE
Installed in office buildings to mark rooms such as meeting rooms, staff offices, restrooms, and elevators. They contribute to efficient navigation and create an inclusive workspace environment.
HOTEL
Commonly used in hotels to indicate room numbers, amenities, dining areas, and emergency routes. These signs support guest comfort, safety, and accessibility throughout the facility.
HOSPITAL
Used in hospitals to label restrooms, elevators, patient rooms, and emergency exits, these signs provide clear guidance and accessibility for all, including the visually impaired.
Opciones de materiales
Text & lcons Material Options:
① Acrylic
② Stainless Steel
③ Brass
④ Aluminum
Background Panel Material Options:
① Stainless steel
② Brass
③ Aluminium
④ ABS Double Colour
Finish Options:
Braille Beads Options:
① Stainless Steel Brailles Beads
② Brass Brailles Beads
③ Clear Acrylic Brailles Beads
④ White Acrylic Brailles Beads
⑤ Black Acrylic Brailles Beads
① Stainless steel
② Brass
③ Aluminium
④ ABS Double Colour
.webp)
_edited.jpg)
.webp)
_edited.jpg)
_edited_edited.jpg)
Text Crafting Techniques
for Braille Signs
3D Printed Text
The text is formed using 3D UV printing technology, where ink is built up layer by layer to create raised characters directly on the acrylic surface. It provides sharp details, excellent adhesion, and is cost-effective for various signage applications.
Embossed Stamping on Acrylic
The characters are formed by stamping or pressing directly into the acrylic using a custom mold. This method offers a clean, integrated finish with excellent durability and tactile feedback, making it suitable for mass production.
In Stock
Our in-stock Braille signage is designed to be multi functional and adaptable to any setting Featuring a range of accessible colors and a minimalist design, these signs seamlessly complement various occasions and can even serve as stylish decor.
Push
·152mm*88mm
· $6.1-$8.5
· Acrylic/Dual-Color Plastic Sheet
· Brushed,UV print etc
Pull
·152mm*88mm
· $6.1-$8.5
· Acrylic/Dual-Color Plastic Sheet
· Brushed,UV print etc
EXAM ROOM 1
·152mm*88mm
· $6.1-$8.5
· Acrylic/Dual-Color Plastic Sheet
· Brushed,UV print etc
1102
·152mm*88mm
· $6.1-$8.5
· Acrylic/Dual-Color Plastic Sheet
· Brushed,UV print etc
BUSINESS CENTER
·152mm*88mm
· $6.1-$8.5
· Acrylic/Dual-Color Plastic Sheet
· Brushed,UV print etc
Exit & Entrance
·152mm*202mm
·$6.1-$8.5
· Acrylic/Dual-Color Plastic Sheet
· Brushed,UV print etc
Pull
·152mm*88mm
· $6.1-$8.5
· Acrylic/Dual-Color Plastic Sheet
· Brushed,UV print etc
EXAM ROOM 1
·152mm*88mm
· $6.1-$8.5
· Acrylic/Dual-Color Plastic Sheet
· Brushed,UV print etc
1102
·152mm*88mm
· $6.1-$8.5
· Acrylic/Dual-Color Plastic Sheet
· Brushed,UV print etc
Customize
· Size optional
· Material optional
· Craftsmanship optional
Installation Guidelines for
Braille Signage
For proper visibility and compliance, Braille signs should be installed as follows:

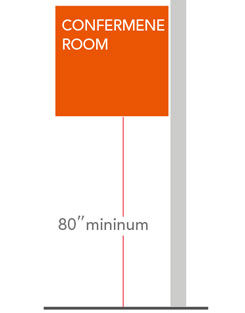

Los letreros de proyección en el techo o la pared deben medir al menos 80 pulgadas desde la parte inferior del letrero hasta el piso.
Los letreros deben colocarse de manera que los caracteres Braille estén entre 48 y 60 pulgadas por encima del suelo, medidos desde la línea de base del carácter táctil más alto.
Braille Sign Fonts / Standard

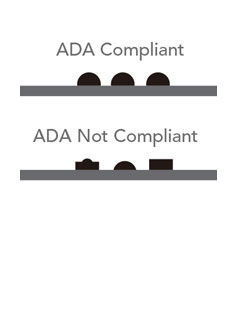

Los puntos braille deben tener forma de cúpula, no planos ni irregulares.
Braille debe ubicarse al menos 3/8 de pulgada (9,5 mm) debajo del texto correspondiente y encima de cualquier borde o elemento decorativo.

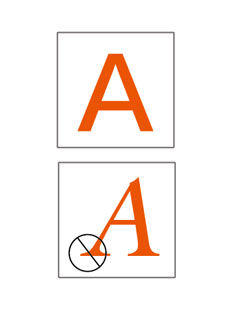

Los caracteres pueden estar en mayúsculas o minúsculas, pero nunca en cursiva, cursiva, decorativa o demasiado negrita.
Los letreros ADA deben usar
una fuente sans-serif.
Our Advantages
Custom ADA - Compliant Sign Creation
We make various custom ADA complinant signs. Raised Tex and raised braille to comply with
ADA rules to create the Braille, we have different options. Including the common methods
of drilling and adding beade. A new option is UV LED printing. With software created by
Direct Color Systeme that makes if faster and easier.
Advanced Printing Process
Our printing process is the-top-of line.We printing directly onto the sign surface, allowing us to avoid peelinig, adhestion issues,fading and unnecessary waste.The ink are colorfast,scratch resistant and waterproof!
Factory-Direct Pricing
– Made in China!
YIJIAO specializes in manufacturing high-quality Braille signs with a strong production capacity and extensive inventory! Our in-stock products ship within one business day, while custom orders are produced and shipped within as fast as five business days.
No need to wait weeks for overseas shipments—enjoy a fast, reliable, and efficient local supply chain that ensures on-time delivery!
Cómo pedir señalización en braille
Indique todas las dimensiones dentro del archivo de arte.
VECTOR PDFWITH SIZES
CUSTOM OPTIONS
A) Opciones de material de texto e iconos
B) Cuentas Braille
C) Material del panel de antecedentes
D) Terminar
E) Opción de montaje y ubicación de instalación (interior, exterior,
agua salada o cerca de rociadores, etc.)
Para enviar sus solicitudes de cotización/pedido, envíe por correo electrónico su archivo de diseño y especificaciones a:
Para solicitudes fluidas, tenga listo lo siguiente:
Se requiere arte basado en vectores para cualquier logotipo o estilo de letra no estándar (cdr, eps, ai, scv, sci, .fs)
El tamaño del logotipo o las letras terminadas deben estar en el archivo artístico.
Acabado metálico o color pintado del logotipo o letra.
Color de la bombilla/Tamaño de la bombilla
Método de montaje y ubicación de instalación (interior, exterior, agua salada o cerca de rociadores, etc.)
Número de juegos
Contact Us
Interested in placing an order or learning more? Simply reach out today.
